Material: Alluvial gold ore, alluvial diamond ore
Max Feed Size：100mm
Capacity: 10tph
Gold/Diamond Size Distribution: Most of the gold particle size is 0-2 mm; there is also 2-25 mm occasional coarse gold nugget; Diamond nugget size 2-25 mm.
Process Description

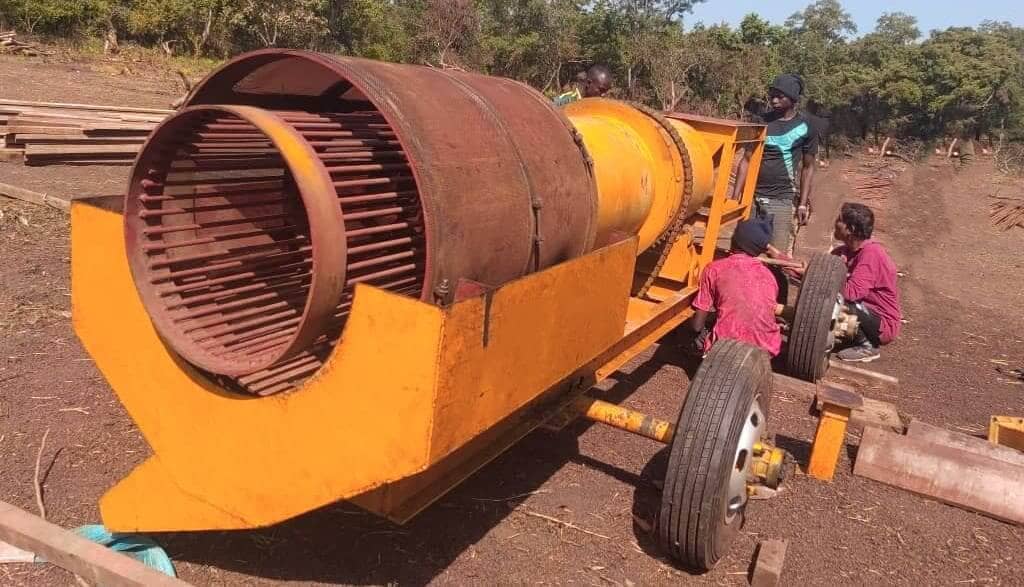

JXSC has provided a complete set of equipment for the Central Africa 10TPH Alluvial Gold & Diamond Wash Plant Project. It is configured with the mobile trommel scrubber, mobile jig separator, mobile centrifugal gold concentrator, mobile shaking table, gold sluice box, water pump, slurry pump, etc.
Project Overview
- Project Location: Central Africa
- Mineral Type: Alluvial gold ore, alluvial diamond ore
- Project Background: This project is located in Central Africa. The client is an American background mining company focusing on small-scale gold mining. They required a reliable and easy-to-operate gold and diamond processing solution. They have many different sites.
Raw Ore Information
- Max Feed Size: 100mm
- Ore Hardness: Sandy ore, not very hard
- Clay Content: With sticky clay
- Gold/Diamond Size Distribution: Most of the gold particle size is 0-2 mm; there is also 2-25 mm occasional coarse gold nugget; Diamond nugget size 2-25 mm.
Processing Capacity Requirement
- Required Capacity：10tph per hour.
- Working Hours per Day：8-10 hours
- Future Expansion: The client required a processing capacity of 10 tons per hour for alluvial gold and diamonds. And he has many different sites. He ordered 2 sets of 10tph mobile alluvial gold plants and 2 sets of 10tph mobile alluvial diamond wash plants. He also plans to process rock gold in the future.
Our Process Design & Solution
Process Description
Washing → Screening → Gravity Concentration → Final Gold /Diamond Recovery

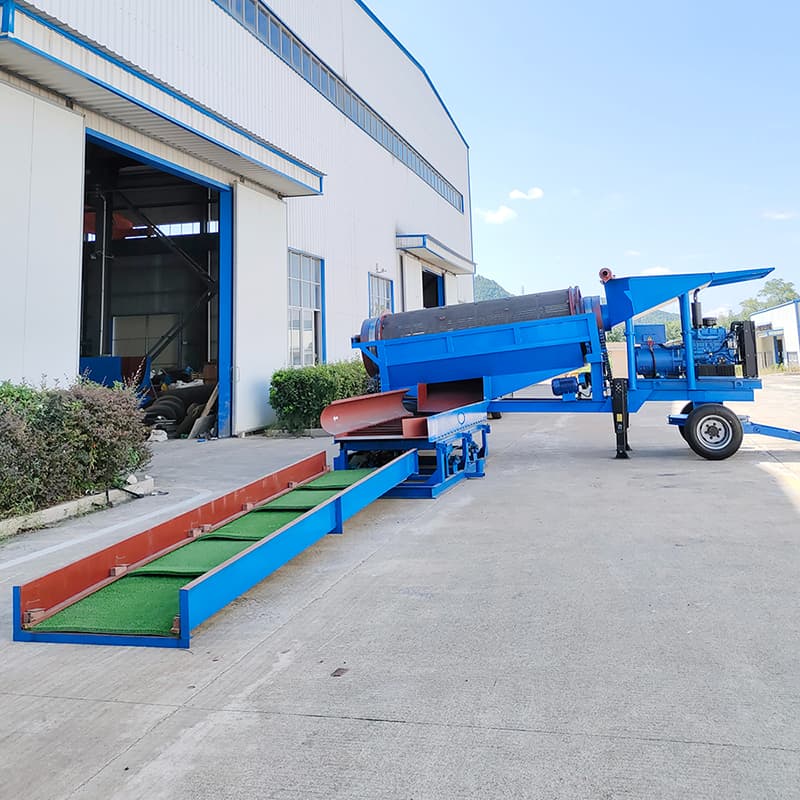

Main Equipment List for alluvial gold

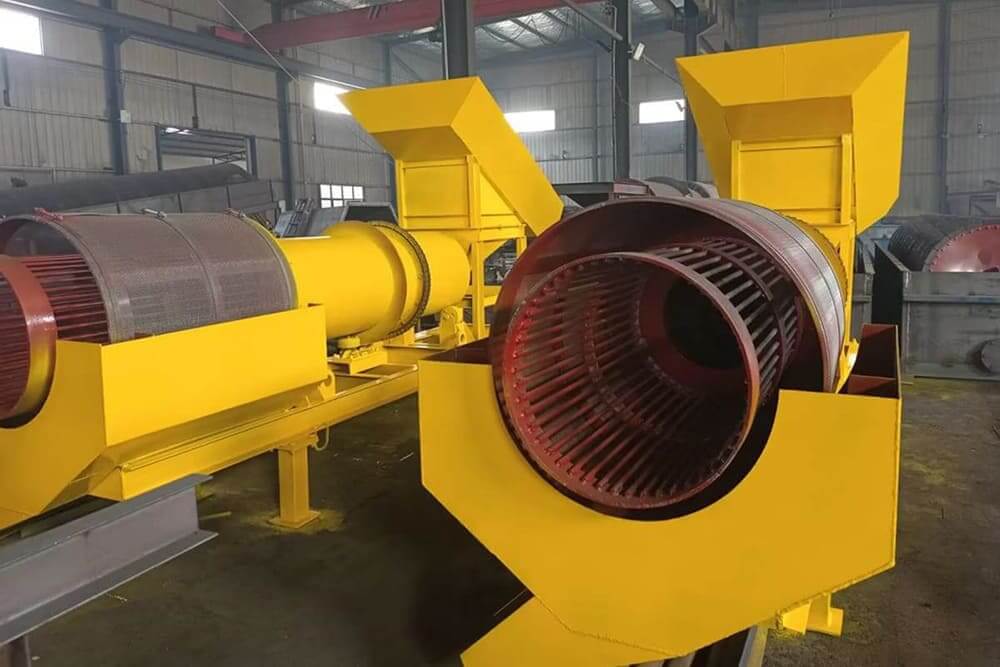

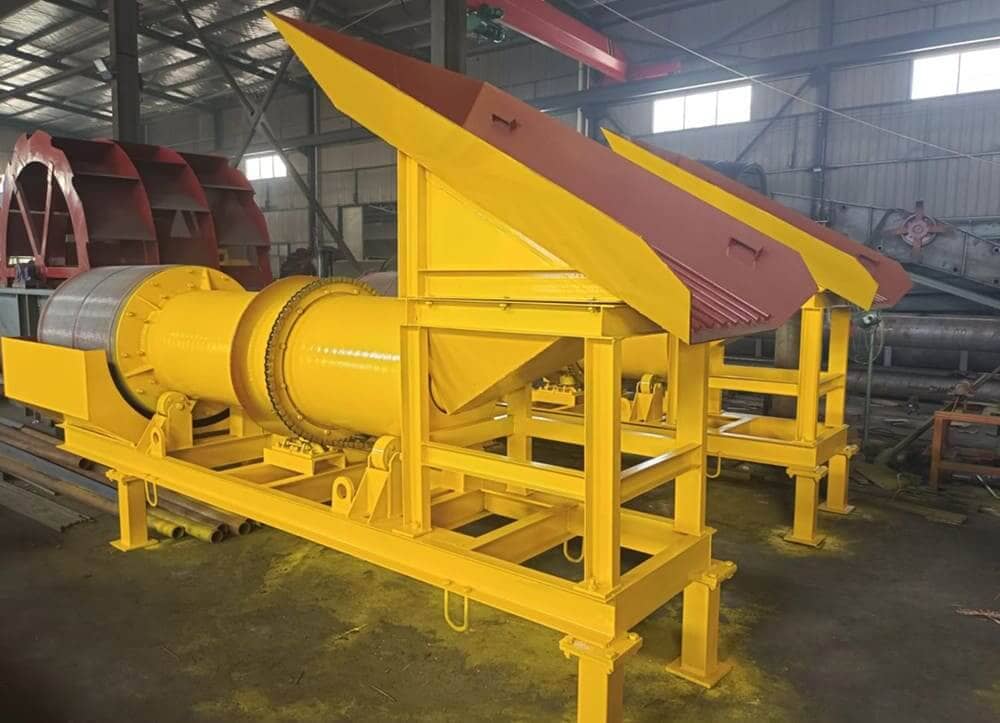

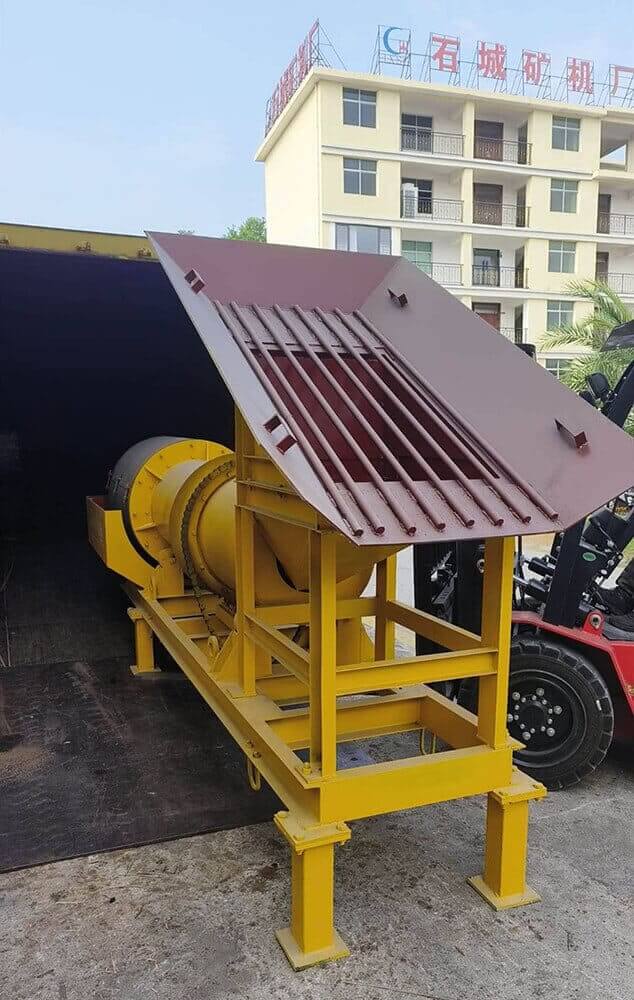

- Mobile trommel scrubber
- Mobile centrifugal gold concentrator
- Mobile shaking table
- Gold sluice box
- WaterPump & Slurry pump
- Spare parts

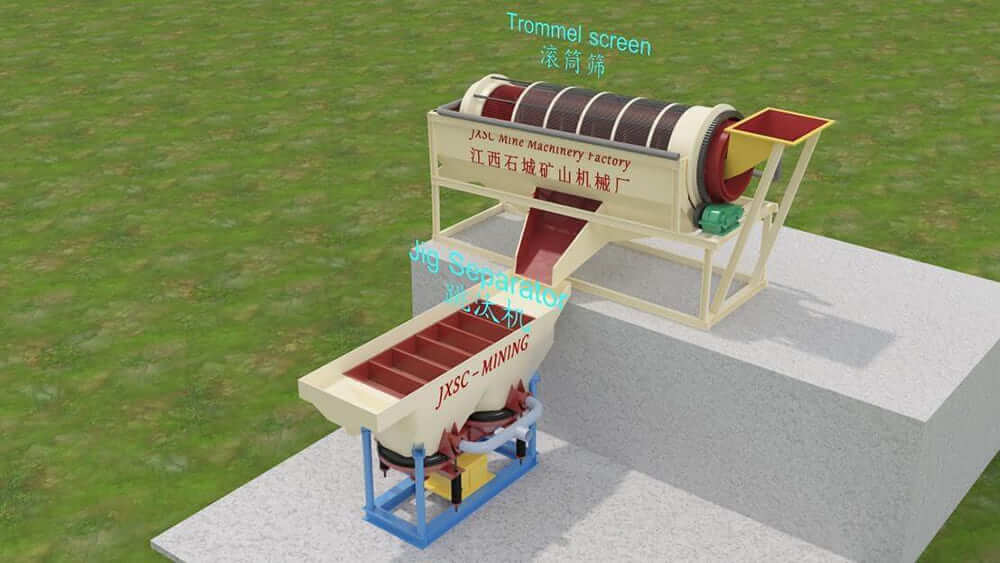

Main Equipment List For Alluvial Diamond
- Mobile trommel scrubber

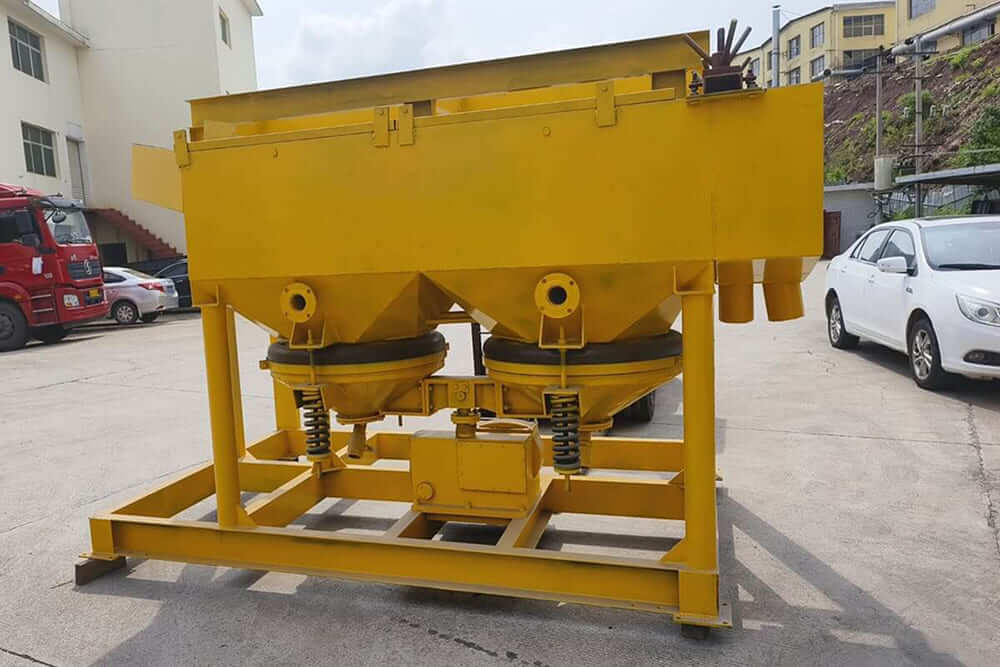

- Mobile jig separator
- Water Pump
- Spare parts
- Diesel generator
- Pickaxe
- Weeding shovel
Applicable Clients
✔ Suitable for
- Small to medium-scale gold/diamond mining projects
- Alluvial sticky clay ore
- Capacity from 5tph to 100tph for mobile type. 100-300tph for the stationary type.
✖ Not suitable for
- Rock-type ore
- Alluvial ore without clay.
Customer Questions & Our Answers
Question 1: We have both alluvial gold and alluvial diamond ore in many different sites. Can your company produce the machine to process them?
Answer: Sure, our company has been set up since 1985. We have much experience in producing mining equipment. Especially in gold mining and diamond equipment.
Question 2: What gold/diamond recovery rate can be achieved?
Answer: The gravity recovery rate can reach 85–90%, depending on the ore condition.
Question 3: Does my gold/diamond ore come with sticky clay? Can you machine wash it clean?
Answer: Sure, our trommel scrubber has install cast iron spiral. It can strongly wash it clean.
Question 4: We have both fine gold particles and larger gold nuggets. Do you have a plant that can recover both sizes of gold nugget?
Answer: Sure. For fine gold (0-2mm), we can separated by the centrifugal concentrator. And for the coarse gold nugget, we can use a gold sluice box to capture the large gold nugget.
Question 5: We want to make a mobile and portable type of gold/diamond wash plant. Is it possible?
Answer: Yes, our factory can make 5-100tph gold/diamond wash plant as a mobile type. If the customer needs, we can make it. Over 100tph plant, it can only be made Skid-mounted or a stationary one.
Question 6: There is no power in my mine site. Can you provide a diesel generator? We want to buy all the machines from our factory.
Answer: Yes, no problem. We can supply a Weichai diesel generator at a good price. The Weichai brand diesel generator is the top brand. It provides local service.
Question 7: Do you have any good suggestions regarding after-sales service and repairs?
Answer: Our company provides a 12-month warranty (excluding wear and tear parts). We also offer online after-sales service. Additionally, I recommend purchasing a 6-month supply of spare parts for future needs.
Question 8: Can you provide the equipment drawings?
Answer: Once we receive your deposit payment, our engineer will design the detailed plant layout drawing, foundation drawing for you, and also each main machine’s drawing & machine operation manual. All the technical support will be provided to assist with the installation.
Customer Feedback
The client is satisfied with the plant performance and gold/diamond recovery results. The system operates stably and meets the expected production target. And he is going to buy a rock gold process plant from our company in the near future.
Why the Customer Chose JXSC?
- Customized processing solution
- High gold/diamond recovery rate
- Installation & technical support
- Rich project experience and patient service
